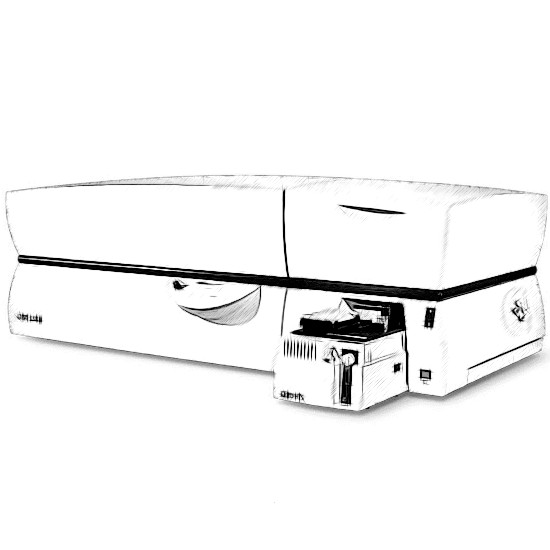

The Becton Dickinson LSR II Flow Cytometer is the first and only air-cooled, four-laser benchtop flow cytometer with the ability to acquire up to 18 colors. At the heart of the BD LSR II is the new digital acquisition, allowing for additional parameters to be detected, and yielding more information per cell. BD Biosciences digital flow cytometry software provides both online and offline compensation running in a Windows-based environment. Configure your cytometer with fixed-alignment 488-nm, 633-nm, 405-nm, and 355-nm lasers as well as a variety of optional lasers. Light is transmitted by fiber optics to an innovative Octagon detector array with user-interchangeable reflective dichroics and optically matched bandpass filters for increased sensitivity. Multicolor experiments are now easier when running them on the Becton Dickinson LSR II Flow Cytometer.
Here we are showing you our standard packing process
1. All items are different, but they all follow the same principle when packaging.
2. Start with a well-constructed crate
A well-constructed crate would consist of 1/2” to 5/8” Plywood with framing. We generally purchase our crates from a third party who specializes in custom crates.
3. You always want the Instrument to not be directly on the wood deck of the crate. This is done by placing it on foam, inside of the crate. We use 2” 1.7 lb. density foam which works great. It provides cushioning and enough firmness to support the Instrument.

4. The next step is to make sure there is nothing on the deck of the Instrument and the Head/ Arm is secured. In some cases there will be multiple arms to secure but for this example there is only one. The reason for this is so there is no free movement during transit which could cause serious damage to the Instrument.

5. The next step is to make sure your Instrument is covered in either a pallet bag or shrink wrap so no dust or foreign object will get into the crate.

6. The next step is to secure the instrument inside the crate by bracing. We use a method of 2x4’s which have 1” foam shrink wrapped to them so no piece of wood touches the actual instrument.
7. Final step is to photograph everything inside the crate and then seal it with screws.
